Eddy Correlation Amplifier Housing
Amplifier Housing - Impulse

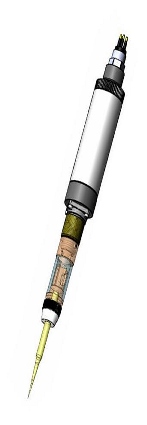

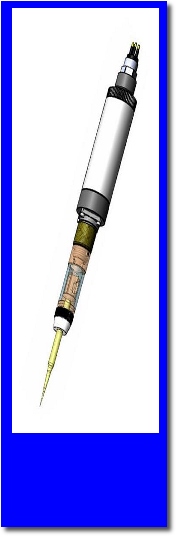

Picture right is the amplifer housing and sensor holder.
Amplifer uses Impulse 5-pin oil filled connectors. Connectors
are pressure rated to ~340 atmosheres.

Female (connects with electrode) minature high density 5-pin
oil filled : MHDG-5-CCP-OF
Male (connects with amplifier) minature high density 5-pin oil
filled : MHDG-5-BCR-OF

Contact:

Dan McGinnis
Leibniz Institute of Marine Sciences
RD2 Marine Biogeochemistry
Wischhofstr. 1-3, Bldg. 12/212
D-24148 Kiel, Germany

Office: +49 431 600 1409
Cell: +49 151 2533 0901
Email: dmcginnis@ifm-geomar.de
http://www.ifm-geomar.de/

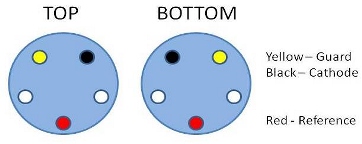

Pin specifications above are from Peter Berg, color labeling
is same as for Anni Glud's sensors. Although a 3-pin
connector could be used, we stay with 5-pin in the event
another constituent would be measured (e.g. temperature)

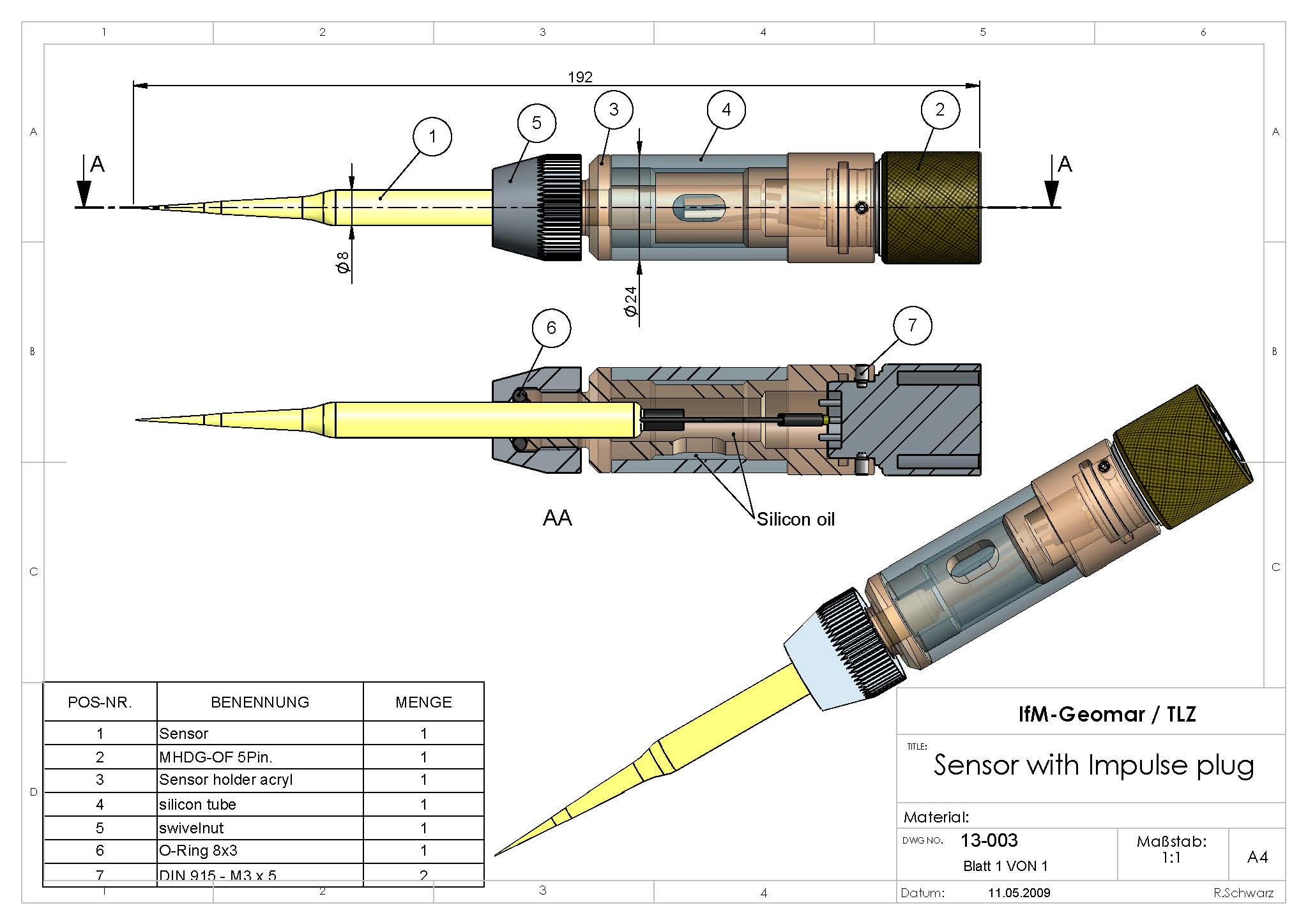

Sensor close-up with Impulse Plug
Current design of
holder for impulse
connection

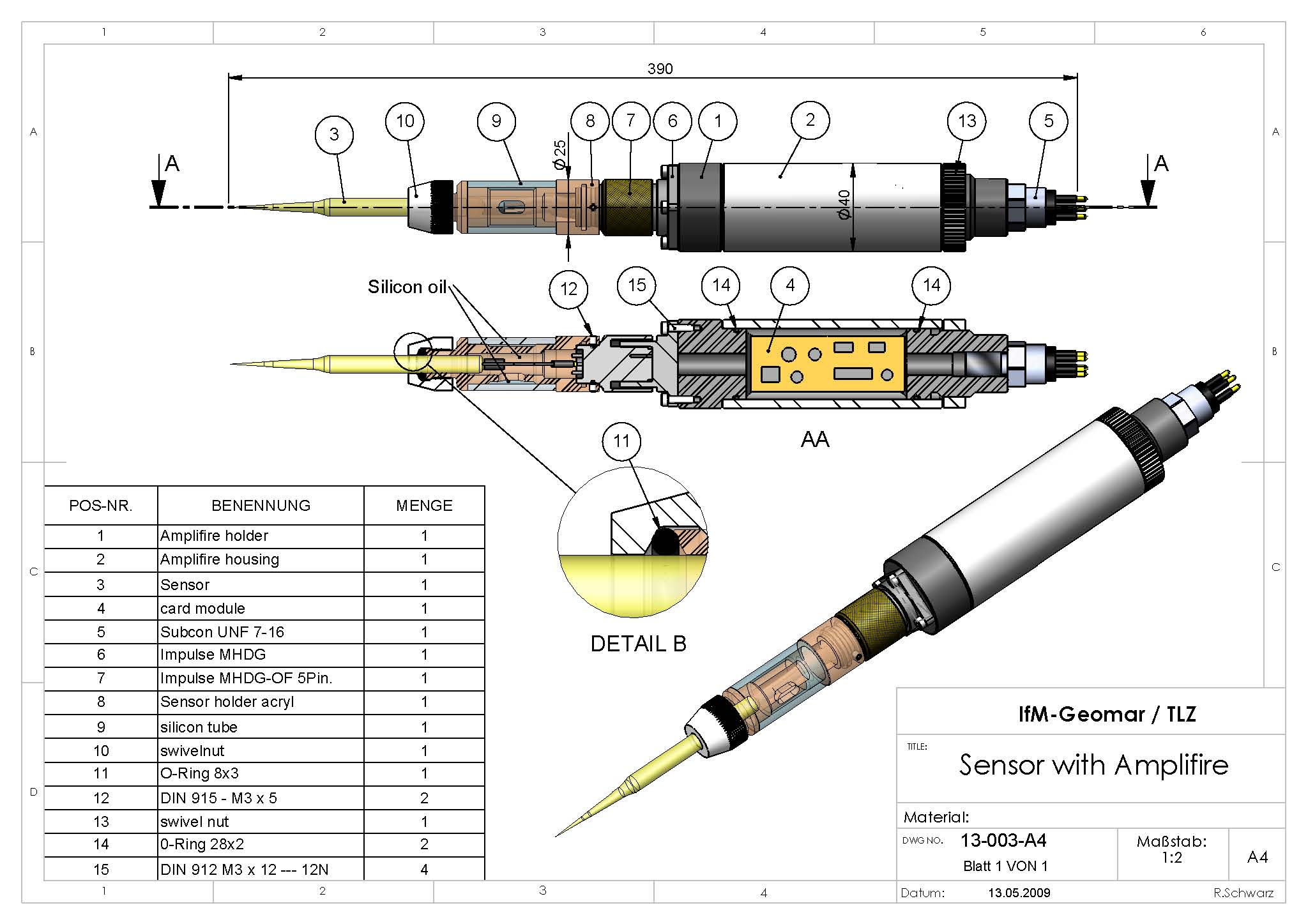

Click Sketch for
plan
Amplfier Housing - Impulse vs. Kemlon Connection

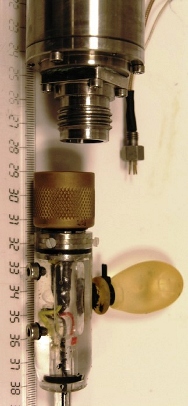

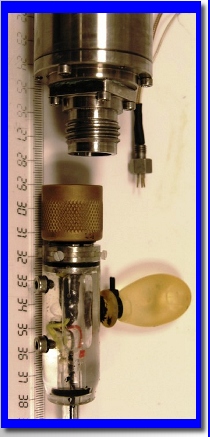

Above is current SAMS
system. They will move
towards the Kemlon
connector (right side).
Photo from Ronnie Glud.
IFM - GEOMAR

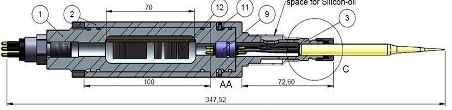

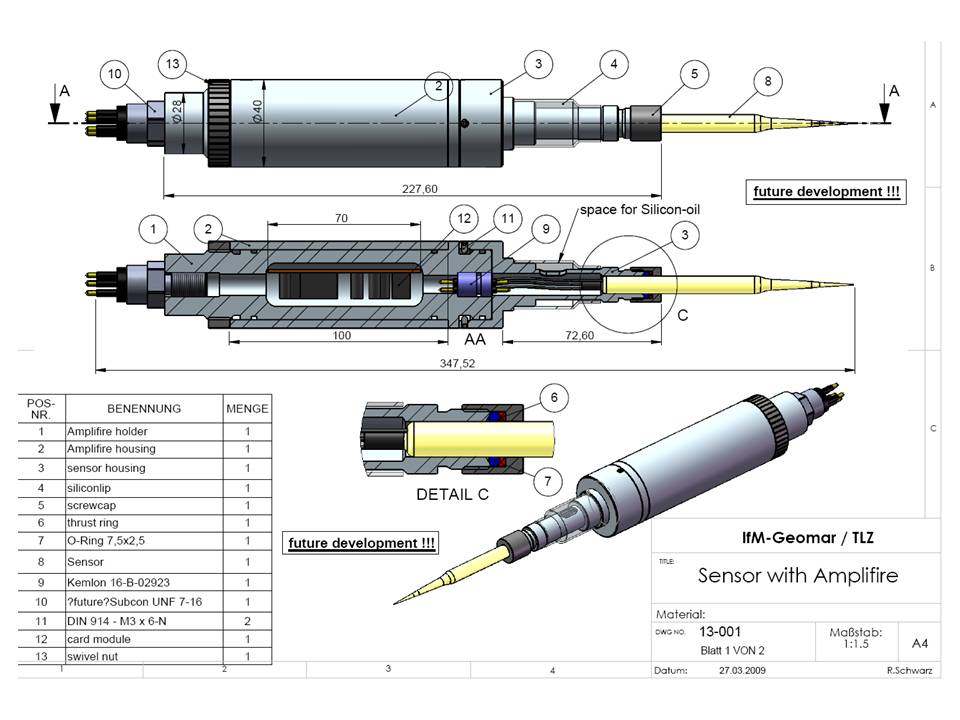

Above is the same basic design as the impulse version, only the front
needs to be relaced for Kemlon connector. Click for sketch.

Advantages of Kemlon Connection:
- Higher Impedance (less signal loss)
- Others?

Advantages of Impulse Connection:
- About 5x less expensive than Kemlon
- Easier to polarize and quickly mount to amplifier
- extra (5-pin) pins allow logging of additional parameter
- Others?
