Deployment - Considerations for frame design and deployment include: -Environmental (currents, flow variability, depth, bottom hardness, etc) -Deployment methods (divers, from shore, deep water, ROV) -Artifacts (flow obstructions, vibrations) |
Contact: Dan McGinnis Leibniz Institute of Marine Sciences RD2 Marine Biogeochemistry Wischhofstr. 1-3, Bldg. 12/212 D-24148 Kiel, Germany Office: +49 431 600 1409 Cell: +49 151 2533 0901 Email: dmcginnis@ifm-geomar.de http://www.ifm-geomar.de/ |
Standard Frame - Peter Berg’s design Peter Berg’s frame (shown top right) was used at Eawag (bottom right). Peter’s drawings were changed to SI and slightly modified by Lorenzo Rovelli (PhD Student). Frame is designed to be light, and easily deployed by hand in relatively slow current speeds. Allows resolution of fluxes from all directions, however flux artifacts caused by flow past legs is still unknown. Hand drawn plans |

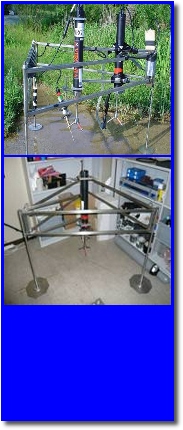

Top - UVA frame with Eawag EC system mounted. Bottom, new Eawag frame from Peter Berg’s design (plans at left in SI units). |
IFM - GEOMAR using ROV deployment The frame on the right is designed for deploying the EC by ROV in the extreme North Sea environment. Water body is tidally influenced, with currents ranging from 0 to 1 m/s. Concerns include vibration (either by frame, parts, or deployment ropes and buoys), as well as movement of the lander frame. Frame features include changeable feet... |
Frame design for North Sea deployment (Figure by R. Schwarz). Click here for all views. |
IFM - GEOMAR using ROV deployment |

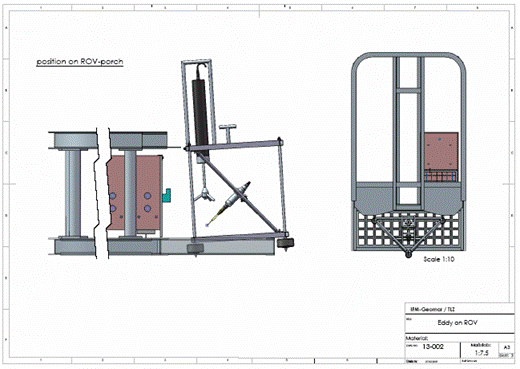

ROV KIEL 6000 (Foto: K. Witkiewicz, IFM-GEOMAR) Left: deployment of ADV frame (note that is older version of frame) on ROV porch (Figure by R. Schwarz) |
Many thanks to the ROV team for assisting with the Frame design, special thanks to... |
